Flange
Flanges are manufactured using various standards like ASME, PN, MSS and Others. In India we are following ASME Series B16.5 for the Flanges. Flanges are generally design based on Pipe Size and Pressure Class Rating.
ASME B16.5 : Pipe Flanges & Flanged Fittings for size 1/2″ to 24″
ASME B 16.5 describes the PT Rating of Flanges, Material group and Flanges Provides Dimension for :
a) WeldNeck Flange
b) Slip-On Flange
c) Socket Weld Flange
d) Threaded Flange
e) Blind Flange
f) Lap Joint Flanges

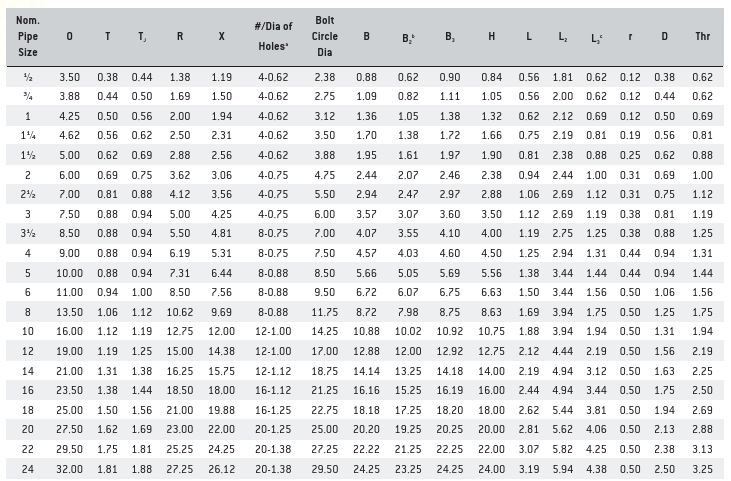

150# – ASME B 16.5

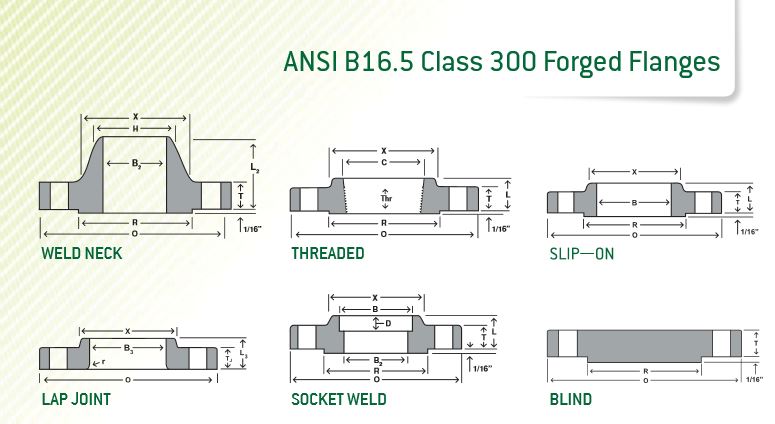

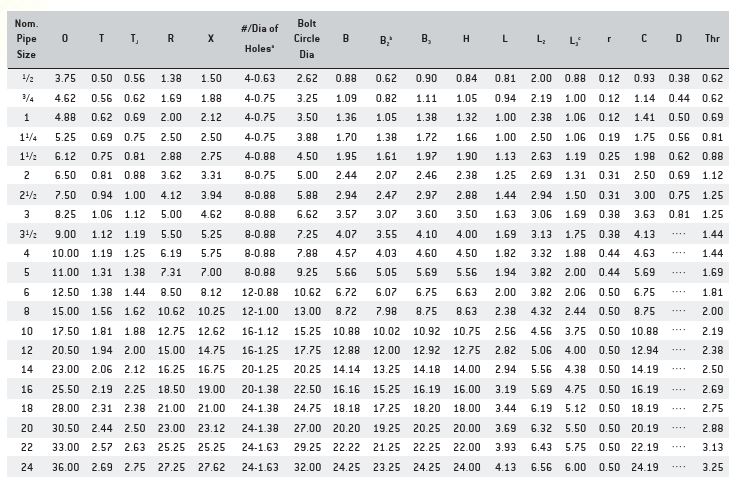

300# – ASME B 16.5

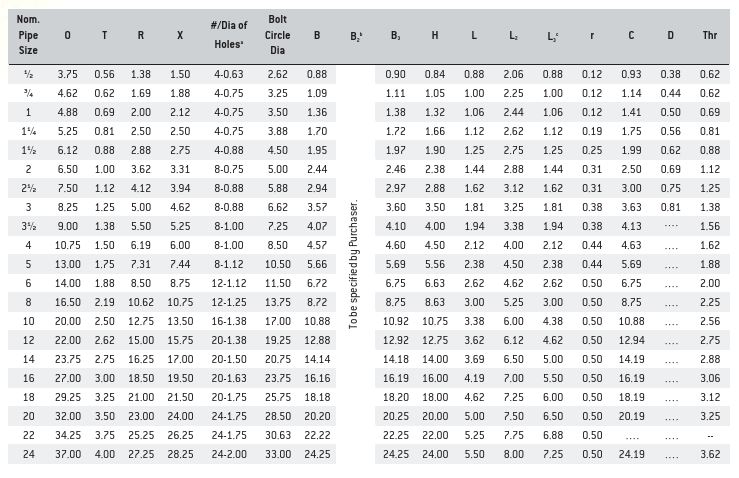

600# – ASME B 16.5
Please find attached herewith the link for download the Flange catalog from Texas Flange Website.

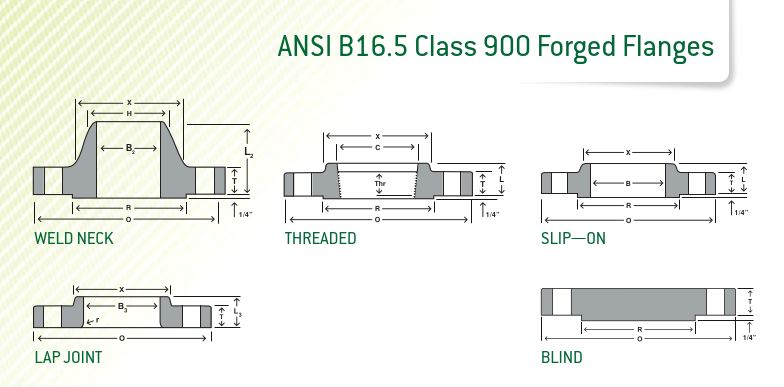

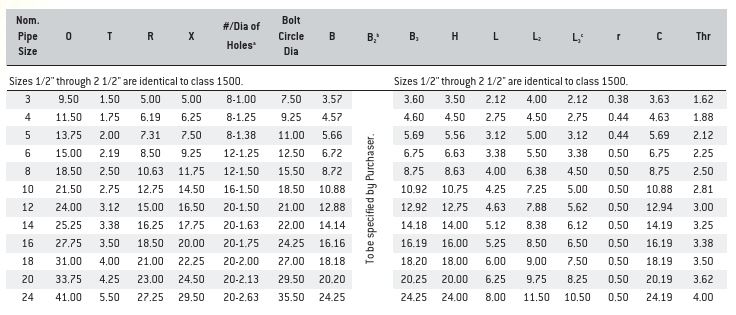

900# – ASME B16.5
